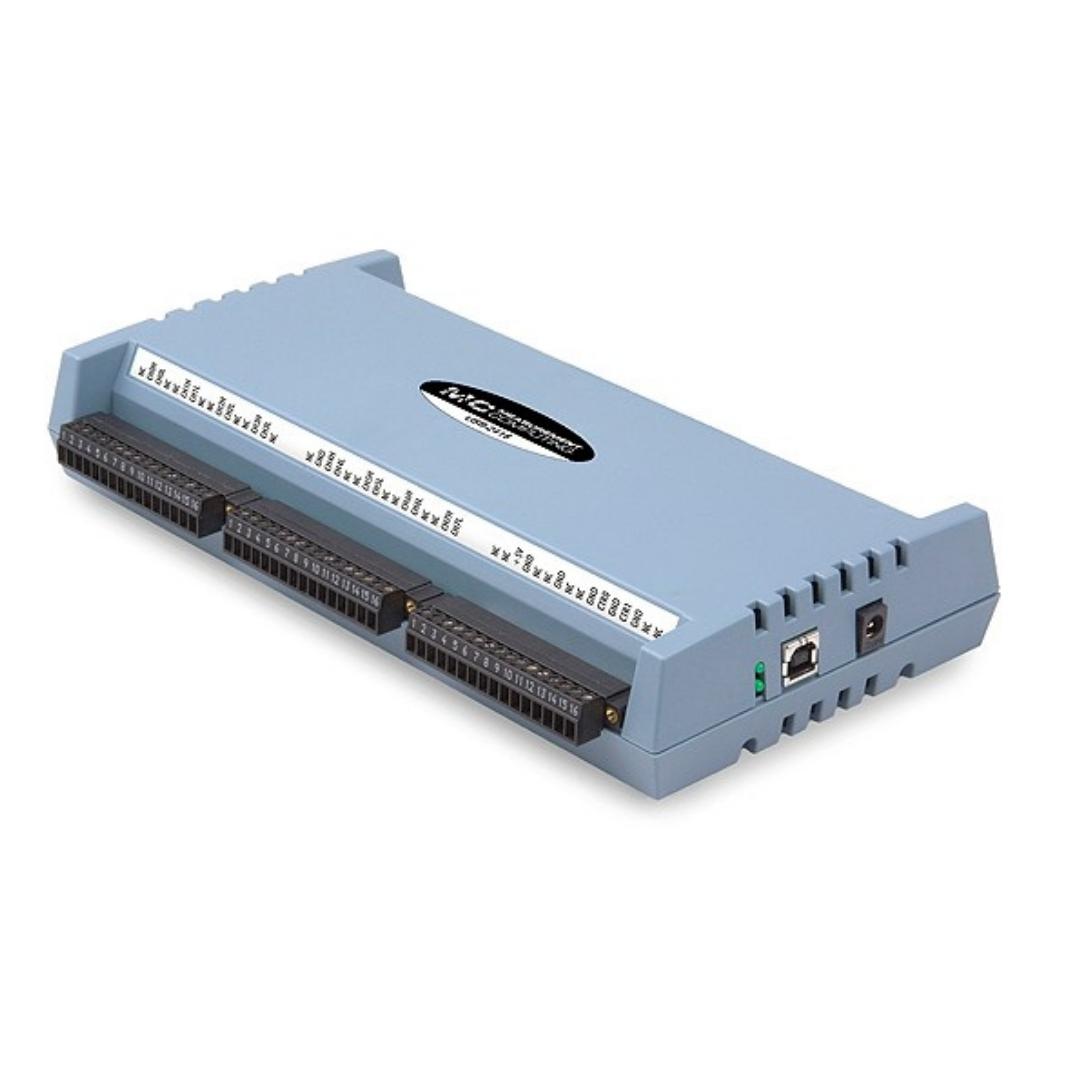

The USB-2416 Series of USB data acquisition (DAQ) devices
The USB-2416 Series of USB data acquisition (DAQ) devices are ideal for higher channel count applications measuring voltage or thermocouples. Features include expandable analog and digital I/O along with counter functions. Up to four analog outputs are available. Analog input channels are expandable up to 64 SE/32 DIFF using AI-EXP32.
Features:
- Measure thermocouples or voltage
- 32 analog inputs, expandable to 64
- 24-bit resolution
- 1 kS/s sampling
- Up to 4 analog outputs
- 8 digital I/O, expandable to 24
- Two counters
- Regulated power supply included
Supported Operating Systems
- Windows® 11/10/8/7 / Vista® / XP 32/64-bit
- Linux®
The USB-2416 Series of USB data acquisition (DAQ) devices include products:
- USB-2416-4AO
- USB-2416
*Learn more about MCC: Here
*Fanpage: DIGI TECHNOLOGIES
| PART NUMBER | DESCRIPTION |
|---|---|
| USB-2416-4AO | DAQ device with 32 SE/16 DIFF analog inputs (thermocouple or voltage, expandable to 64 SE/32 DIFF), 24-bit resolution, 1 kS/s sample rate, 4 analog outputs, 8 digital I/O (expandable to 24), and 2 counter inputs. |
| USB-2416 | DAQ device with 32 SE/16 DIFF analog inputs (thermocouple or voltage, expandable to 64 SE/32 DIFF), 24-bit resolution, 1 kS/s sample rate, 8 digital I/O (expandable to 24), and 2 counter inputs. **Not recommended for new applications. Please consider the USB-2416-4AO instead.** |
| ANALOG INPUT | |||
| CHANNELS | RESOLUTION | MAX SAMPLE RATE | SAMPLING |
| 32 SE/16 DIFF expandable to 64 SE/32 DIFF | 24-bit | 1 kS/s | Multiplexed |
| RANGES | ISOLATION | ||
| ±20 V, ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV, ±156.25 mV, ±78.125 mV | 500 VDC ch-host | ||
| SENSOR | |||
| THERMOCOUPLE | RTD | THERMISTOR | VOLTAGE |
| Yes | — | — | Yes |
| ANALOG OUTPUT | |||
| CHANNELS | RESOLUTION | SPEED | |
| Up to 4 | 16-bit | Up to 1 kS/s | |
| DIGITAL I/O | |||
| CHANNELS | COUNTER/TIMERS | ENCODER | |
| 8 | 2/— | — | |
| SOFTWARE | POWER | |
| OS SUPPORT | DRIVERS | POWER |
| Windows® and Linux® | Universal Library™ SW Suite | External |
