SRM System

Product code:SRM
Supplier:NRG Systems
Price: Inquiry
Description
Specifications
Application
Download

Whether tracking or fixed, mono- or bifacial, 3 MW or 300 MW, NRG is focused on delivering repeatable solar resource measurements across your fleet of projects. From prompt and accurate project bidding support to post-installation training of O&M staff, NRG’s solar solutions span beyond our purpose-built and easy-to-use hardware products. We will tailor the measurement configuration to suit your needs and once finalized, NRG’s lean manufacturing operations excel at producing a consistent, quality result, project after project.

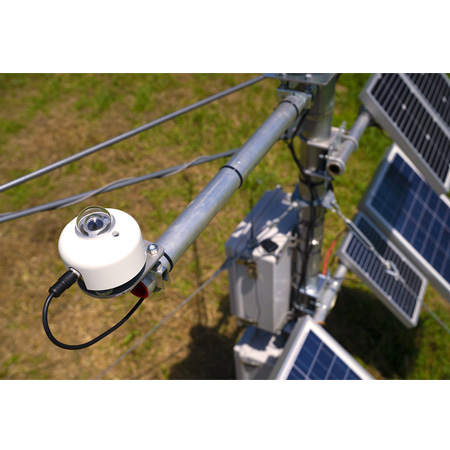

Anchoring these solutions is our SRM System – a turnkey measurement station for performance monitoring of utility-scale PV projects per IEC 61724-1:2017. Sharing many foundational components with our SRA System, NRG’s approach to SRM involves a thoughtfully designed and integrated system of both original equipment and third-party products and services.



The result is a system that delivers accurate, site-specific data including all relevant meteorological and environmental conditions: solar irradiance, module temperature, soiling conditions, and more.



If you are interested in an SRM System from NRG, please contact our sales team to discuss configuration options.

  • NRG’s lean manufacturing and global supply chain capabilities enable professional, repeatable measurement results across your fleet of projects
  • Integrated system approach translates to simplified procurement, shorter lead times, and more efficient installations and O&M services
  • Backed by global Technical Services Partner Network
  • Technically sophisticated yet easy to use, this system reliably delivers accurate data to the local SCADA network via Modbus TCP
