Powerful scattered-light aerosol spectrometer system for particle measurement from 120 nm

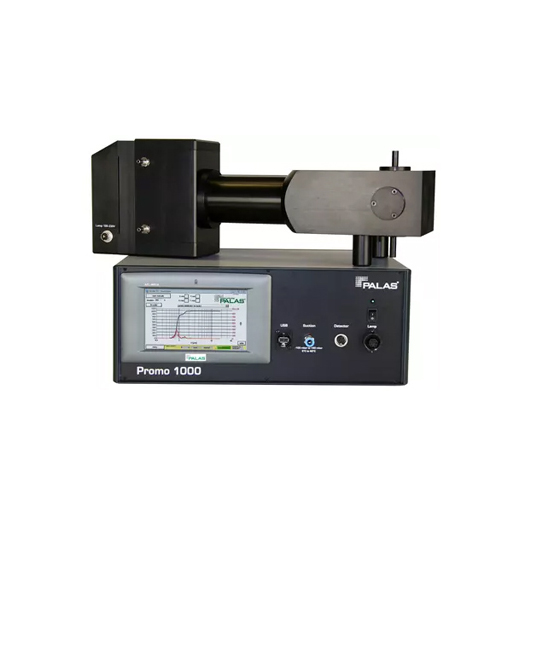

Aerosol Spectrometers Promo 1000
- Measuring range of 120 nm to 40 µm (4 measuring ranges selectable in one device)
- Up to four measuring ranges in only one device: 0,12 µm – 3,5 µm (additionally in welas® 1000 and Promo® 1000); 0,2 µm – 10 µm; 0,3 µm – 17 µm; 0,6 µm – 40 µm
- Up to 128 size channels per measuring range
- Calibration curves for different refractive indices
- Very high and reproducible counting efficiency rate starting at 0.12 µm
- High temporal resolution down to 10 ms
- PDAnalyze analysis software
- Calibration, cleaning and lamp replacement can all be performed independently by the customer
- External control by RS 232 or Ethernet
- Optional: Software PDControl for operation as welas® digital available
- Simple operation
- Low maintenance costs with Promo 1000 aerosol spectrometer
- Reliable function
*Learn more about Palas: Here
*Fanpage: DIGI TECHNOLOGIES
Technical Data |
Description |
| Interfaces | USB, Ethernet (LAN), RS232/485, Wi-Fi |
| Measurement range (size) | 0.12 – 3.5 µm,
0.2 – 10 µm, 0.3 – 17 µm, 0.6 – 40 µm |
| Size channels | Up to 128 (64/decade) |
| Measuring principle | Optical light-scattering |
| Measurement range (number CN) | < 5×10^5 hạt/cm³ |
| Time resolution | 1s |
| Thermodynamic conditions | 10 – 40 °C,
-100 – 50 mbar |
| Volume flow | 5 l/phút; 1,6 l/phút |
| Data acquisition | Digital, 20 MHz processor, 256 raw data channels |
| Light Source | Xenon Hochdrucklampe 75 W |
| User interface | Touchscreen, 800 • 480 pixel, 7" (17.78 cm) |
| Power supply | 115 – 230 V,
50 – 60 Hz |
| Housing | Table housing, optionally with mounting brackets for rack-mounting |
| Dimensions | 185 x 450 x 315 mm (H x W x D) (19″) |
| Weight | Approx. 8 kg (control unit), 18 kg (sensor) |
| Operating system | Windows embedded |
| Data logger storage | 4 GB |
| Software | PDControl, FTControl |
| Installation conditions | +5 – +40 °C (control unit) |
- Determination of the separation efficiency of car interior filters, engine air filters, room air filters, compressed air filters, vacuum cleaner filters, cleanable filters, electrostatic precipitators, oil separators, cooling lubricant separators, wet scrubbers, cyclones and other separators
- Isothermal and isobaric particle size and quantitative determination, for instance in the automobile, chemical, pharmaceutical and food industries
- Analysis of fast, transient processes
- Inspection of smoke detectors
- Particle formation for cloud formation
