NRG PVT1 PV temperature sensor
Because temperature has a significant impact on the performance of operational PV solar systems, PV module temperature is one of the most critical measurements to monitor and analyze.

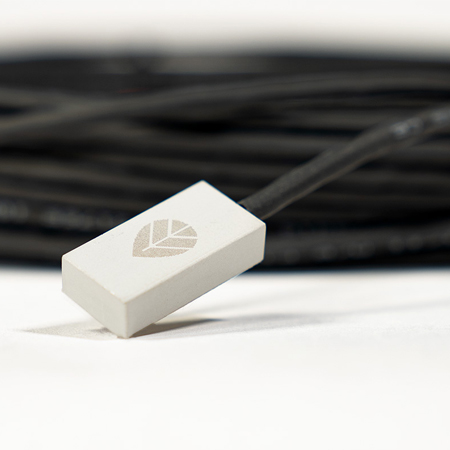

Purpose-built to withstand the elements and accurately sense PV module temperature, our 0.2 C interchangeable 10K NTC Thermistor sensor ensures Class A measurements per IEC-61724-1:2017. The PVT1’s 4-wire cable configuration delivers accurate measurement regardless of cable length when used with our SymphoniePRO Data Logger and enables flexible positioning on PV arrays.

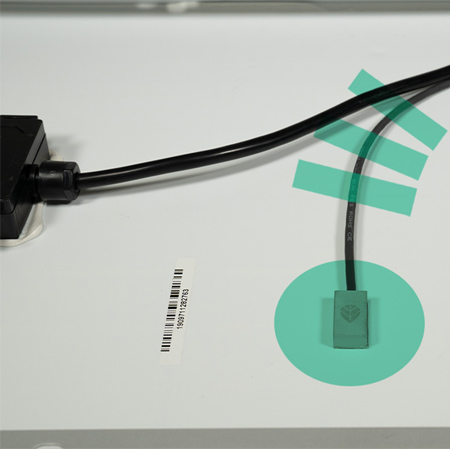

Each sensor comes with double-sided adhesive on its compact housing as well as a specially designed adhesive system to secure both sensor and cable in place for easy and repeatable installation as well as long-term performance.
3m (#9421) |
10m (#9422) | 20m (#9423) | 50m (#9424) | 100m (#9426) | |
|---|---|---|---|---|---|
DESCRIPTION |
|||||
| Sensor type | 10 kΩ NTC thermistor | 10 kΩ NTC thermistor | 10 kΩ NTC thermistor | 10 kΩ NTC thermistor | 10 kΩ NTC thermistor |
| Applications |
|
|
|
|
|
| Sensor range | -55 °C to 150 °C (-67 °F to 302 °F) | -55 °C to 150 °C (-67 °F to 302 °F) | -55 °C to 150 °C (-67 °F to 302 °F) | -55 °C to 150 °C (-67 °F to 302 °F) | -55 °C to 150 °C (-67 °F to 302 °F) |
| Instrument compatibility | NRG SymphoniePRO Data Logger | NRG SymphoniePRO Data Logger | NRG SymphoniePRO Data Logger | NRG SymphoniePRO Data Logger | NRG SymphoniePRO Data Logger |
OUTPUT SIGNAL |
|||||
| Transfer function | Steinhart-Hart Coefficients:
|
Steinhart-Hart Coefficients:
|
Steinhart-Hart Coefficients:
|
Steinhart-Hart Coefficients:
|
Steinhart-Hart Coefficients:
|
| Accuracy | ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) | ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) | ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) | ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) | ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) |
POWER REQUIREMENTS |
|||||
| Supply current | 15 μA maximum (supplied by logger) | 15 μA maximum (supplied by logger) | 15 μA maximum (supplied by logger) | 15 μA maximum (supplied by logger) | 15 μA maximum (supplied by logger) |
INSTALLATION |
|||||
| Mounting | Adhere to back of PV module (adhesive tape included) | Adhere to back of PV module (adhesive tape included) | Adhere to back of PV module (adhesive tape included) | Adhere to back of PV module (adhesive tape included) | Adhere to back of PV module (adhesive tape included) |
ENVIRONMENTAL |
|||||
| Operating temperature range | -40 °C to 105 °C (-40 °F to 221 °F) | -40 °C to 105 °C (-40 °F to 221 °F) | -40 °C to 105 °C (-40 °F to 221 °F) | -40 °C to 105 °C (-40 °F to 221 °F) | -40 °C to 105 °C (-40 °F to 221 °F) |
| Operating humidity range | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH |
PHYSICAL |
|||||
| Connections | Wire leads:
|
Wire leads:
|
Wire leads:
|
Wire leads:
|
Wire leads:
|
| Cable length | 3.0 m (9.8 ft) | 10.0 m (33 ft) | 20.0 m (66 ft) | 50.0 m (164 ft) | 100.0 m (328 ft) |
| Weight | 46.7 g (0.10 lbs) | 156.9 g (0.35 lbs) | 313.8 g (0.69 lbs) | 790 g (1.74 lbs) | 1637 g (3.61 lbs) |
| Dimensions | Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick | Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick | Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick | Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick | Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick |
MATERIALS |
|||||
| Cable | 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket | 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket | 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket | 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket | 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket |
| Probe | Aluminum, epoxy filled | Aluminum, epoxy filled | Aluminum, epoxy filled | Aluminum, epoxy filled | Aluminum, epoxy filled |
