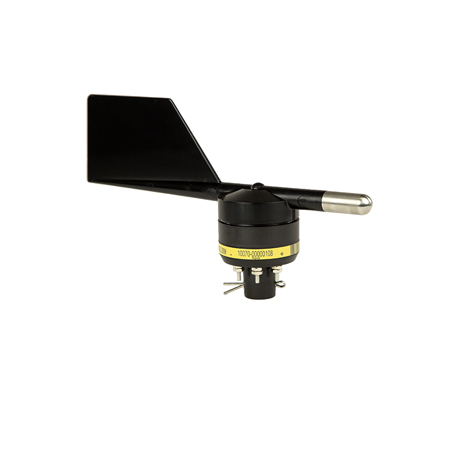

NRG Systems’ 200M Wind Direction Vane brings significant upgrades to the proven design of our 200P Wind Direction Vane.
NEW IN THE 200M:
- No Dead Band: The 200M has 360° continuous measurement, whereas the 200P has an 8° max. dead band centered on 0°.
- Reduced Sensor Uncertainty: The 200M’s sensor uncertainty is ±1.6° across virtually its full range, whereas the 200P’s sensor uncertainty outside the dead band region is ±4.3°.
- Improved Vane Orientation Precision and Repeatability: The 200M’s improved mounting system makes it easier to precisely determine sensor orientation once installed on a boom.
- Firmer Mounting Connection: The 200M’s new mounting system enables a firmer connection between the vane and mounting boom, making it less likely that vane orientation will drift over time.
- Improved Protection Against Water and Dust Ingress: The 200M’s bearing and electronics capsules are fully sealed against water and dust ingress, making it less likely that corrosion or dust will damage the sensor over time.
- Transparent Records of Sensor Response and Quality: Factory calibration certificates with sensor-specific scale and offset values will be available at no extra cost.
MAINTAINED FROM THE 200P:
- Proven Aerodynamic Performance and Robustness: The 200M utilizes the same black, UV-stabilized injection molded plastic vane wing and sensor body that the 200P has been proving in the field for decades.
- Easy Sensor Traceability: Individual unit serialization makes it easier to keep track of your wind vane’s unique history and ties it to its sensor-specific slope and offset values determined during the manufacturing process or in a wind tunnel.
- Easy Compatibility: The 200M’s simple voltage output is compatible with all industry-standard data loggers, including legacy NRG loggers, and is designed to work seamlessly with the NRG SymphoniePRO® Data Logger.
- Low Power Draw: With a current draw of <500uAmps on SymphoniePRO wind vane channels, there is no need to increase the size of the standard power supplies you use today to accommodate the 200M.
Factory Calibrated (#11748) |
MEASNET Calibrated (#14619) | MEASNET Calibrated, DWG (#11967) | |
|---|---|---|---|
DESCRIPTION |
|||
| Sensor type | Continuous rotation wind direction vane | Continuous rotation wind direction vane | Continuous rotation wind direction vane |
| Applications |
|
|
|
| Sensor range | 360° mechanical, continuous rotation Maximum sustained wind speed > 90 m/s |
360° mechanical, continuous rotation Maximum sustained wind speed > 90 m/s |
360° mechanical, continuous rotation Maximum sustained wind speed > 90 m/s |
| Instrument compatibility | All Symphonie Data Loggers | All Symphonie Data Loggers | All Symphonie Data Loggers |
| Measurement range | 0 - 360° 1 to 75 m/s | 0 - 360° 1 to 75 m/s | 0 - 360° 1 to 75 m/s |
OUTPUT SIGNAL |
|||
| Signal type | Analog DC voltage | Analog DC voltage | Analog DC voltage |
| Linearity | 0.1° | 0.1° | 0.1° |
| Transfer function | SymphoniePRO:
|
SymphoniePRO:
|
SymphoniePRO:
|
| Dead band | None | None | None |
| Calibration | Each sensor is individually factory calibrated. Factory calibration certificates provided via electronic download. | Each sensor is individually factory calibrated and calibrated at SOH WE wind tunnel per IEC 61400-12-1 Ed. 2 Part 12-1. Factory and SOH WE wind tunnel calibration certificates available via electronic download. | Each sensor is individually factory calibrated and calibrated at DWG wind tunnel per IEC 61400-12-1 Ed. 2 Part 12-1. Factory and DWG wind tunnel calibration certificates available via electronic download. |
| Output signal range | 0.007Vdc to 2.5Vdc | 0.007Vdc to 2.5Vdc | 0.007Vdc to 2.5Vdc |
| Resolution | 0.088° | 0.088° | 0.088° |
| Uncertainty | Expanded uncertainty (k=2) 95% confidence [Sensor only]:
|
Expanded uncertainty (k=2) 95% confidence [Sensor only]:
|
Expanded uncertainty (k=2) 95% confidence [Sensor only]:
|
RESPONSE CHARACTERISTICS |
|||
| Threshold | 0.97 m/s (2.16 mph) at 90° per ASTM D5366-96 | 0.97 m/s (2.16 mph) at 90° per ASTM D5366-96 | 0.97 m/s (2.16 mph) at 90° per ASTM D5366-96 |
| Delay distance | 1.18 m (@5 m/s), 1.20 (@10 m/s) per ASTM D5366-96 | 1.18 m (@5 m/s), 1.20 (@10 m/s) per ASTM D5366-96 | 1.18 m (@5 m/s), 1.20 (@10 m/s) per ASTM D5366-96 |
POWER REQUIREMENTS |
|||
| Supply voltage | 4.5 Vdc to 15 Vdc | 4.5 Vdc to 15 Vdc | 4.5 Vdc to 15 Vdc |
| Supply current | 1.5mA | 1.5mA | 1.5mA |
| INSTALLATION | |||
| Mounting | Onto a 13 mm (0.5") diameter mast with cotter pin and #2 phillips set screw. | Onto a 13 mm (0.5") diameter mast with cotter pin and #2 phillips set screw. | Onto a 13 mm (0.5") diameter mast with cotter pin and #2 phillips set screw. |
| Tools required | #2-Phillips driver, 0.25" nut driver, petroleum jelly, electrical tape | #2-Phillips driver, 0.25" nut driver, petroleum jelly, electrical tape | #2-Phillips driver, 0.25" nut driver, petroleum jelly, electrical tape |
ENVIRONMENTAL |
|||
| Operating temperature range | -40°C to 60°C (-40°F to 140°F) | -40°C to 60°C (-40°F to 140°F) | -40°C to 60°C (-40°F to 140°F) |
| Operating humidity range | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH |
| Other |
|
|
|
| PHYSICAL | |||
| Connections | 4-40 nickel plated brass hex nut/post terminals | 4-40 nickel plated brass hex nut/post terminals | 4-40 nickel plated brass hex nut/post terminals |
| Weight | 0.108 kg (0.238 pounds) | 0.108 kg (0.238 pounds) | 0.108 kg (0.238 pounds) |
| Dimensions |
|
|
|
MATERIALS |
|||
| Wing | Black UV stabilized injection-molded plastic | Black UV stabilized injection-molded plastic | Black UV stabilized injection-molded plastic |
| Body | Black UV stabilized static-dissipating plastic | Black UV stabilized static-dissipating plastic | Black UV stabilized static-dissipating plastic |
| Shaft | Stainless steel | Stainless steel | Stainless steel |
| Bearing | Stainless steel | Stainless steel | Stainless steel |
| Magnet | Neodymium | Neodymium | Neodymium |
| Boot | Protective PVC sensor terminal boot included | Protective PVC sensor terminal boot included | Protective PVC sensor terminal boot included |
| Terminals | Nickel plated brass | Nickel plated brass | Nickel plated brass |
- Same vane and body design as 200P ensures seamless transition to 200M
- Like the 200P, the 200M is compatible with all Symphonie Data Loggers
- Field-tested materials for long-lasting durability
- New magnetic encoder-based signal generator means accurate data are available in all wind directions
- Improved mounting precision lowers measurement uncertainty
- Factory calibration certificates with sensor-specific scale and offset values reduce uncertainty caused by sensor-to-sensor variability
