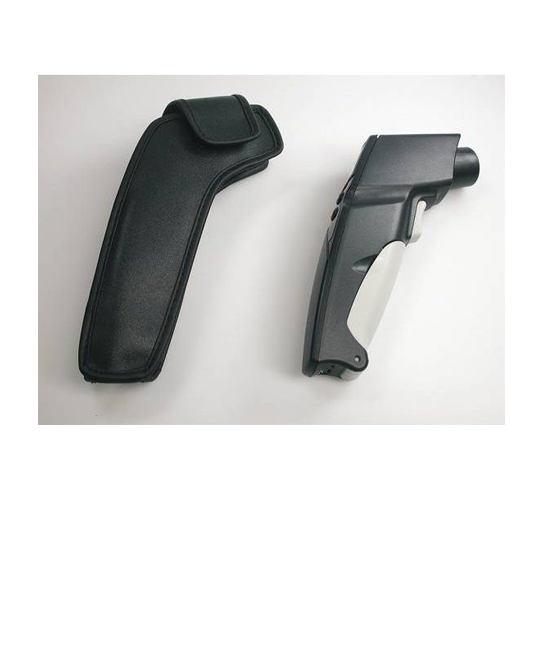

Infrared thermometer – testo 830 T1
The testo 830-T1 IR thermometer with laser measurement spot marker and 10:1 optics is suitable for non-contact surface temperature measurements in trade and industry.
Overview of the advantages of the testo 830-T1 infrared thermometer
- High resolution processor for utmost accuracy (resolution 0.1 °C)
- 10:1 optics for precise measurements even at medium distances
- IR thermometer with 1 point laser measurement spot marker to target the measuring point
- Two alarm limit values that can be defined as required
- Visual and acoustic alarm if limit value exceeded
- Min./max. value display and hold function (to record a measured value)
- Convenient one-handed operation thanks to the ergonomic gun-style design
- Clear, illuminated digital display
The speed of the testo 830-T1 IR thermometer is impressive: it can take two measurements a second. This means you can undertake bigger measuring tasks fast and efficiently.
The infrared thermometer emission level can be individually set. This allows you to adjust it precisely to the material of the surface being measured to achieve the best possible measurement results. For untreated surfaces with a low emission level, we recommend using an emission tape (optional) which makes the IR measurement significantly easier.
Temperature - Infrared |
|
|---|---|
| Measuring range | -30 to +400 °C |
| Accuracy | ±1.5 °C or ±1.5 % of mv (+0.1 to +400 °C) ±2 °C or ±2 % of mv (-30 to 0 °C) (the higher value applies) |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
General technical data |
|
|---|---|
| Weight | 200 g |
| Dimensions | 190 x 75 x 38 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | ABS |
| Battery type | 9V block battery |
| Battery life | 15 h |
| Storage temperature | -40 to +70 °C |
- Infrared thermometer for non-contact surface temperature measurements
- 10:1 optics and high resolution processor for accurate measurement results
- Easy to use thanks to the gun-style design
- Adjustable emission level
