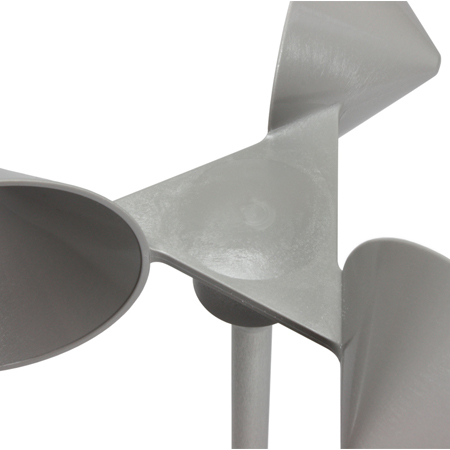

Cảm biến đo gió – P2546-OPR
Ban đầu được thiết kế cho môi trường biển, cảm biến đo gió P2546-OPR lý tưởng cho việc đánh giá tài nguyên gió / nghiên cứu hiệu suất năng lượng cả trên bờ và ngoài khơi.
Có ba phiên bản của cảm biến đo gió P2546-OPR: P2546C-OPR (phiên bản cuộn dây), P2546D-OPR (phiên bản điện tử) và P2546A-OPR (reed switch). Cả hai phiên bản của cảm biến đều hoàn toàn tương thích với tất cả các bộ ghi dữ liệu thuộc dòng Symphonie. Tuy nhiên, NRG đã ngừng bán Máy đo gió P2546A-OPR kể từ tháng 7 năm 2017 do các hạn chế liên quan đến hàm lượng thủy ngân của nó. Bạn sẽ cần phải sử dụng Mô-đun điều hòa tín hiệu (SCM) khi kết nối hơn sáu máy đo gió với bộ ghi dữ liệu SymphoniePLUS3; xin vui lòng xem bảng dưới đây để biết chi tiết.
KHẢ NĂNG TƯƠNG THÍCH CỦA MÔ-ĐUN ĐIỀU HÒA TÍN HIỆU
Model cảm biến |
Model bộ ghi dữ liệu | Mô-đun điều hòa tín hiệu |
---|---|---|
P2546A-OPR | SymphoniePLUS3 trở lên | SCM # 3151 | Máy đo độ ẩm kỹ thuật số |
SymphoniePRO | Không bắt buộc | |
P2546C-OPR | SymphoniePLUS3 trở lên | SCM # 3148 | Coil Anemometer |
SymphoniePRO | Không bắt buộc | |
P2546D-OPR | SymphoniePLUS3 trở lên | SCM # 3148 | Máy đo độ ẩm điện tử |
SymphoniePRO | Không bắt buộc |
Lưu ý: P2546A-OPR chứa 40mg thủy ngân và không còn được bán từ NRG. (P2546-OPR)
*Tìm hiểu thêm về NRG: Tại đây
*Fanpage: DIGI TECHNOLOGIES
MEASNET Calibrated (#6625) | MEASNET Calibrated (#16401) | MEASNET Calibrated, SOH WE + CPH (#16368) | MEASNET Calibrated, DWG (#16370) | |
---|---|---|---|---|
DESCRIPTION | ||||
Sensor type | 3-cup anemometer | 3-cup anemometer | 3-cup anemometer | 3-cup anemometer |
Applications |
|
|
|
|
Sensor range | 0 m/s to 75 m/s (0 mph to 168 mph) | 0 m/s to 75 m/s (0 mph to 168 mph) | 0 m/s to 75 m/s (0 mph to 168 mph) | 0 m/s to 75 m/s (0 mph to 168 mph) |
Instrument compatibility | All NRG Data Loggers | All NRG Data Loggers | All NRG Data Loggers | All NRG Data Loggers |
INPUT SIGNAL | ||||
Signal type (sensor output) |
|
|
|
|
OUTPUT SIGNAL | ||||
Anemometer Transfer Function |
|
|
|
|
Output voltage at threshold |
|
|
|
|
Output voltage at 60Hz |
|
|
|
|
Calibration | Each anemometer individually calibrated, calibration reports provided via electronic download
|
Each anemometer individually calibrated, calibration reports provided via electronic download
|
Each anemometer individually calibrated at SOH WE, Williston, VT USA. Calibration reports provided via electronic download. | Each anemometer individually calibrated at DWG, Varel, DE. Calibration reports provided via electronic download. |
Output signal range |
|
|
|
|
Uncertainty | IEC 61400-12-1 Classification
|
IEC 61400-12-1 Classification
|
IEC 61400-12-1 Classification
|
IEC 61400-12-1 Classification
|
RESPONSE CHARACTERISTICS | ||||
Threshold | < 0.4 m/s (0.9 mph) | < 0.4 m/s (0.9 mph) | < 0.4 m/s (0.9 mph) | < 0.4 m/s (0.9 mph) |
Distance constant (63% recovery) | 1.81 ± 0.04 m (5.94 ± 0.13ft ) | 1.81 ± 0.04 m (5.94 ± 0.13ft ) | 1.81 ± 0.04 m (5.94 ± 0.13ft ) | 1.81 ± 0.04 m (5.94 ± 0.13ft ) |
Moment of inertia | 1.01 × 10-4 kg-m2 (7.45 × 10-5 S-ft2 ) | 1.01 × 10-4 kg-m2 (7.45 × 10-5 S-ft2 ) | 1.01 × 10-4 kg-m2 (7.45 × 10-5 S-ft2 ) | 1.01 × 10-4 kg-m2 (7.45 × 10-5 S-ft2 ) |
Swept diameter of rotor | 187 mm (7.36 inches) | 187 mm (7.36 inches) | 187 mm (7.36 inches) | 187 mm (7.36 inches) |
INSTALLATION | ||||
Mounting | Onto a 25 mm (0.984 inch) diameter mast with two set screws | Onto a 25 mm (0.984 inch) diameter mast with two set screws | Onto a 25 mm (0.984 inch) diameter mast with two set screws | Onto a 25 mm (0.984 inch) diameter mast with two set screws |
Tools required | 4mm Allen wrench | 4mm Allen wrench | 4mm Allen wrench | 4mm Allen wrench |
ENVIRONMENTAL | ||||
Operating temperature range | -35 °C to 60 °C (-31 °F to 140 °F) | -35 °C to 60 °C (-31 °F to 140 °F) | -35 °C to 60 °C (-31 °F to 140 °F) | -35 °C to 60 °C (-31 °F to 140 °F) |
Operating humidity range | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH | 0 to 100% RH |
PHYSICAL | ||||
Connections | Push-pull connector (purchased separately) | Push-pull connector (purchased separately) | Push-pull connector (purchased separately) | Push-pull connector (purchased separately) |
Weight | 0.36 kg (0.8 pounds) | 0.36 kg (0.8 pounds) | 0.36 kg (0.8 pounds) | 0.36 kg (0.8 pounds) |
Dimensions |
|
|
|
|
MATERIALS | ||||
Cups | Robust one-piece injection molded polycarbonate/glass blend | Robust one-piece injection molded polycarbonate/glass blend | Robust one-piece injection molded polycarbonate/glass blend | Robust one-piece injection molded polycarbonate/glass blend |
Body | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum |
Shaft | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Bearing | Stainless steel ball bearings | Stainless steel ball bearings | Stainless steel ball bearings | Stainless steel ball bearings |
Magnet | One permanent ring magnet | One permanent ring magnet | One permanent ring magnet | One permanent ring magnet |
- Đánh giá tài nguyên gió
